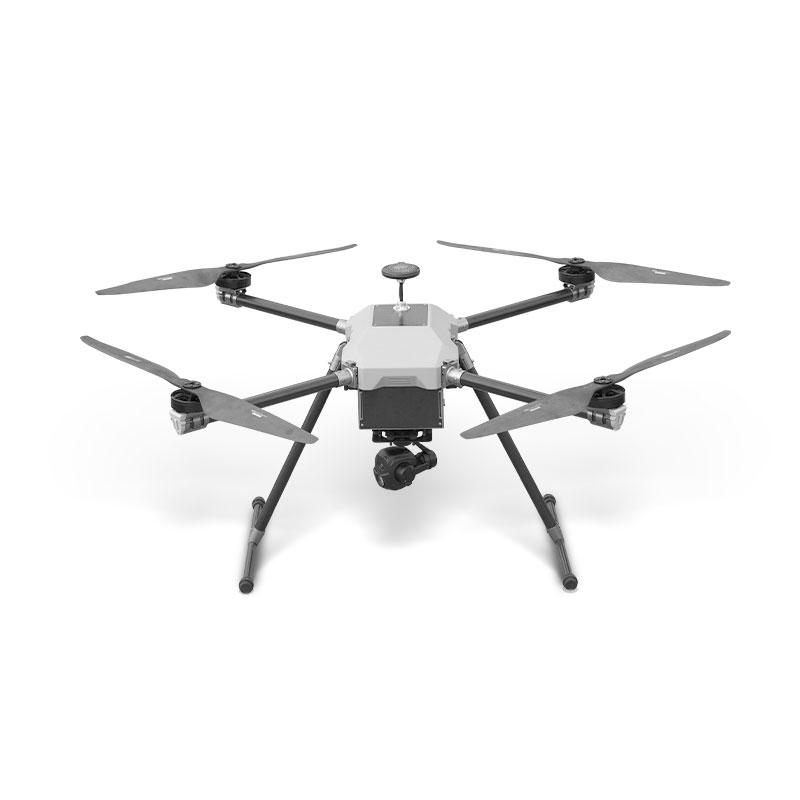

The HZH C491 inspection drone combines lightweight design, advanced features, and ease of use, making it the perfect choice for professionals in various fields looking to enhance their inspection capabilities with cutting-edge drone technology.
Product Parameters
| Aerial Platform | |
| Product Material | Carbon Fiber + 7075 Aviation Aluminum + Plastic |
| Dimensions ( Unfolded ) | 740*770*470mm |
| Dimensions ( Folded ) | 300*230*470mm |
| Rotor Distance | 968mm |
| Total Weight | 7.3kg |
| Rain Prevention Level | Moderate Rain |
| Wind Resistance Level | Level 6 |
| Noise Level | <50dB |
| Folding Method | The Arms Fold Downwards, with Quick-Release Landing Gear and Propellers |
| Flight Parameters | |
| Max. Hover-Flight Time | 110 mins |
| Hover-Flight Time ( with Different Loads ) | Load of 1000g, and Hover-Flight Time of 90 minutes |
| Load of 2000g, and Hover-Flight Time of 75 minutes | |
| Load of 3000g, and Hover-Flight Time of 65 minutes | |
| Load of 4000g, and Hover-Flight Time of 60 minutes | |
| Load of 5000g, and Hover-Flight Time of 50 minutes | |
| Max. Route-Flight Time | 120 mins |
| Standard Payload | 3kg |
| Max. Payload | 5kg |
| Max. Flying Range | 65km |
| Cruising Speed | 10m/s |
| Max. Rise Limit | 5000m |
| Working Temperature | -40ºC-50ºC |
| Water Resistance Level | IP67 |

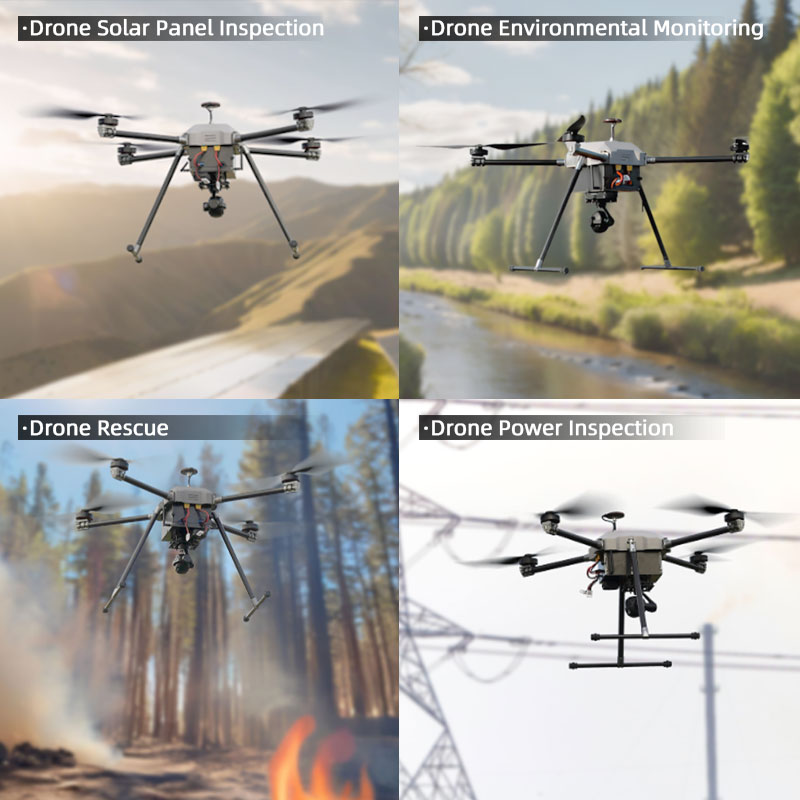

Application Scenarios
- Solar Panel Inspection: Inspection drones are revolutionizing the maintenance of solar panels. Equipped with high-resolution cameras and thermal imaging sensors, these drones can quickly and accurately identify defects, dirt accumulation, and hotspots on solar panels. This technology enables efficient detection of issues that can reduce the efficiency of solar energy systems. By providing real-time data and high-quality imagery, drones allow technicians to pinpoint problem areas without the need for manual inspections, saving both time and labor costs.
- Environmental Monitoring: They allow for frequent and precise monitoring of environmental changes and can help track the impacts of climate change, deforestation, and urbanization. The data collected by drones is invaluable for researchers and policymakers aiming to protect the environment.
- Emergency Rescue: In emergency rescue operations, drones offer significant advantages in terms of speed, safety, and efficiency. During fires, drones can quickly assess the situation, identify hotspots, and monitor the spread of flames, all while keeping rescue personnel at a safe distance. Equipped with thermal cameras, drones can see through smoke and provide real-time imagery to guide firefighters. In other disasters, such as floods or earthquakes, drones can locate survivors, assess structural damage, and deliver essential supplies, enhancing the overall effectiveness of emergency response efforts.
- Power Line Inspection: Traditional methods involve significant time, cost, and risk as they require climbing towers or using helicopters. Drones, however, can perform inspections more safely and efficiently. They can fly close to power lines to capture high-resolution images and thermal data, identifying issues such as corrosion, loose connections, and overheating components. This allows for regular inspections, preventing outages and maintaining a reliable power supply. Drones can also access hard-to-reach areas, reducing the need for extensive manual inspections and enhancing overall operational efficiency.
Standard Configuration

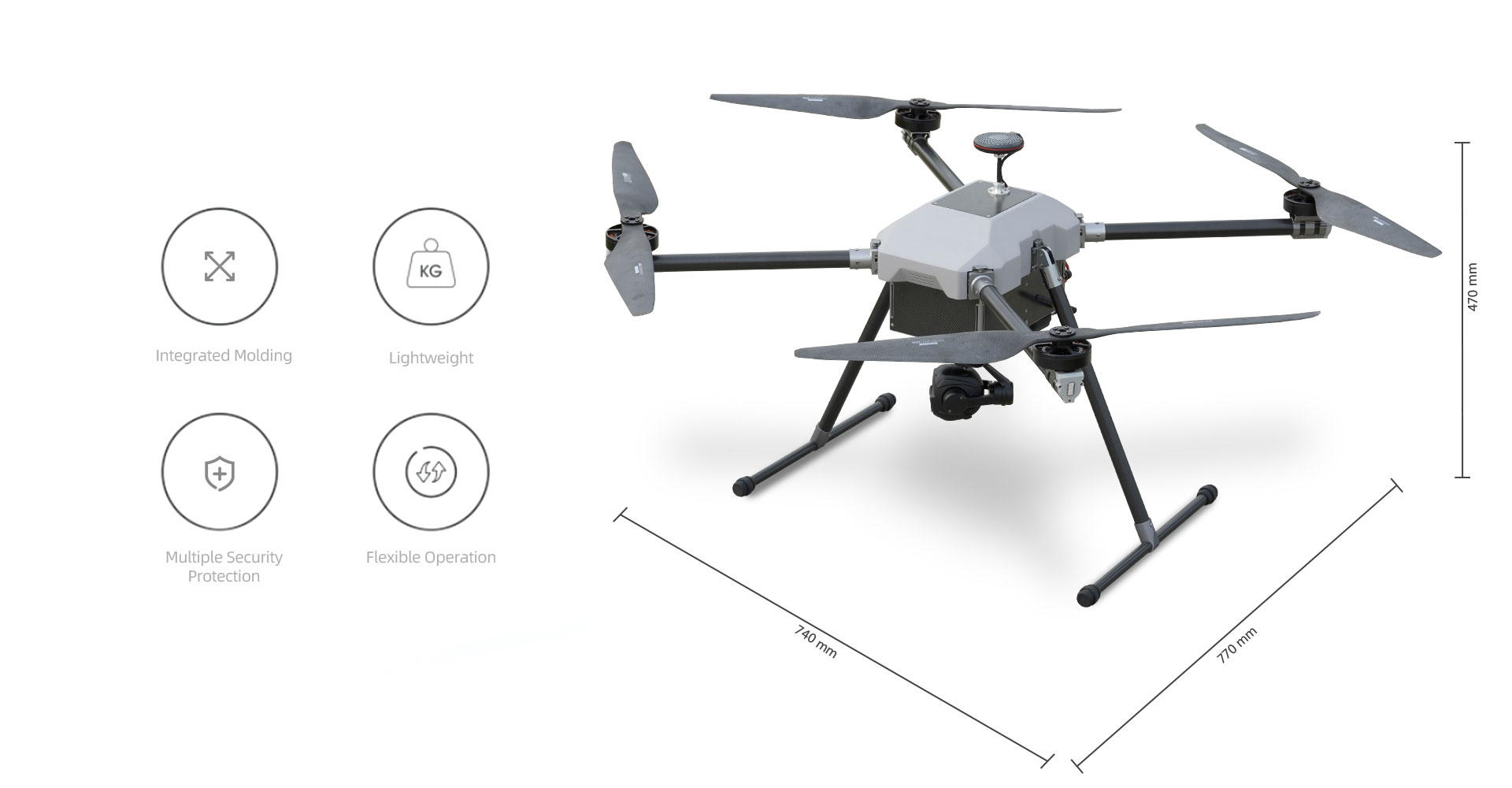

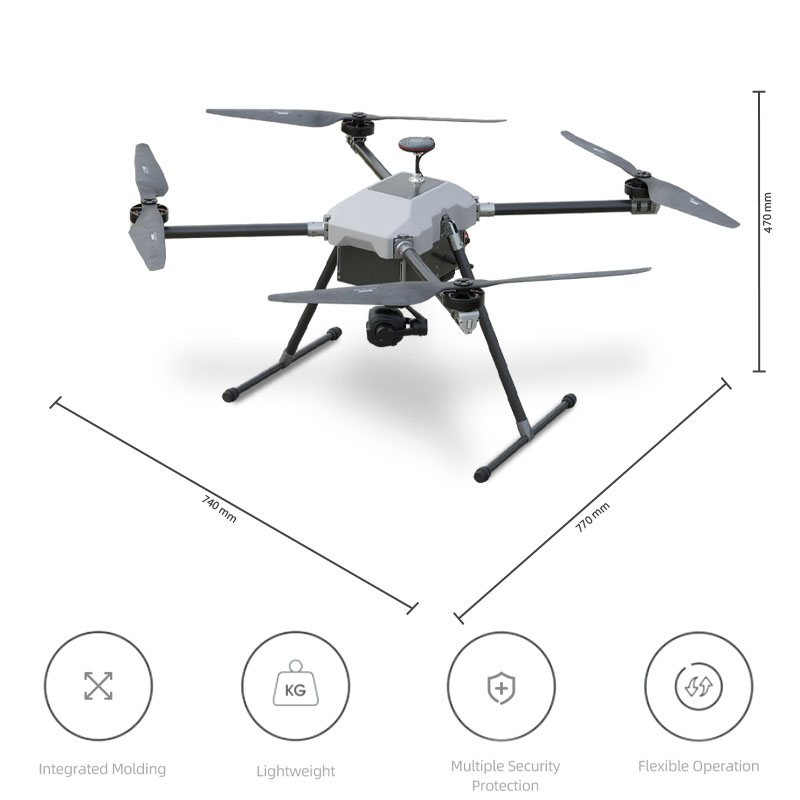

- Compact Design: The unfolded size of the drone is 740*770*470mm , ensuring it is compact and easy to handle.
- Automatic Task Mode: The fully automatic task mode simplifies operations, enabling users to execute complex inspection tasks with minimal manual intervention.

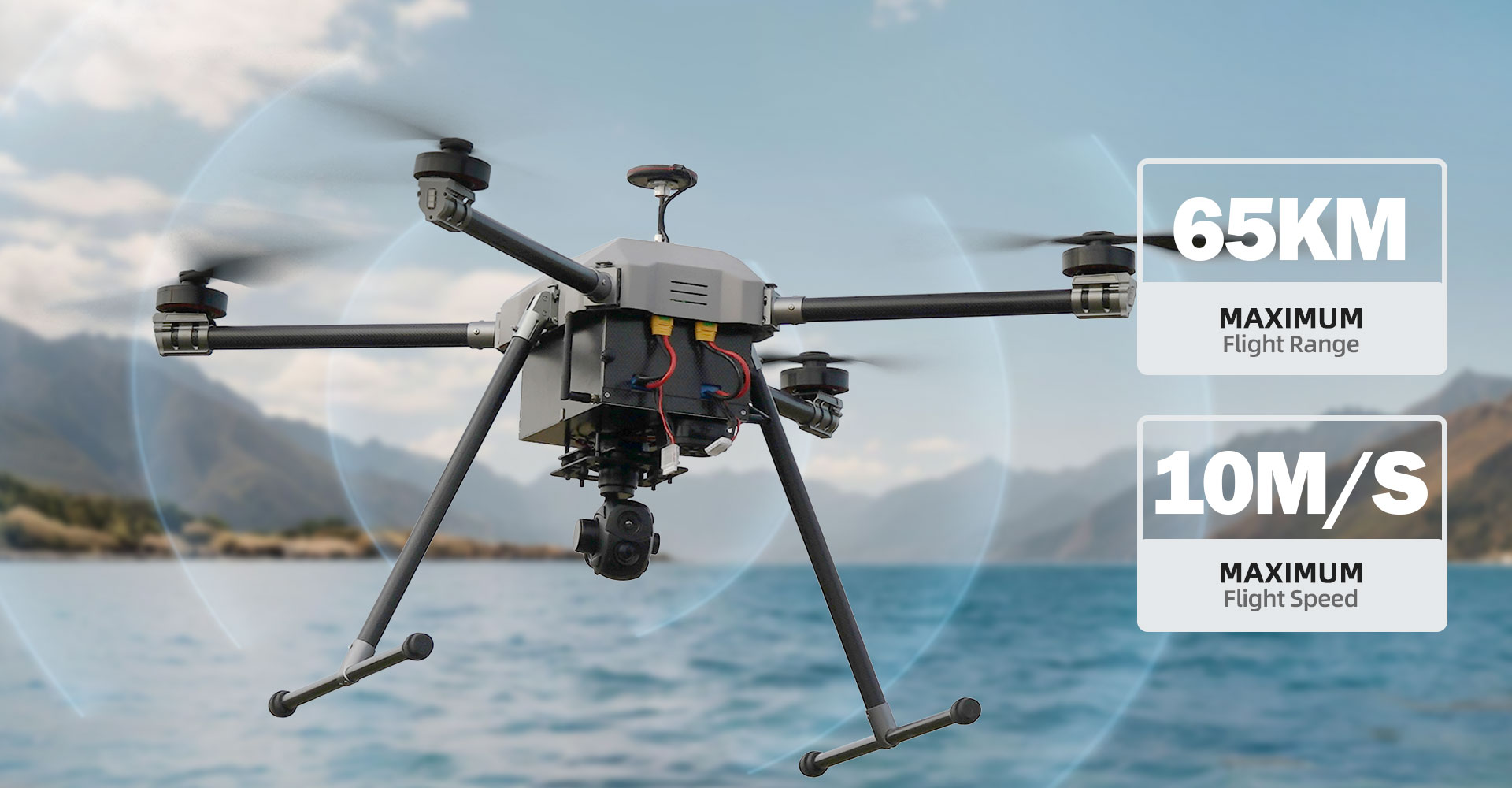

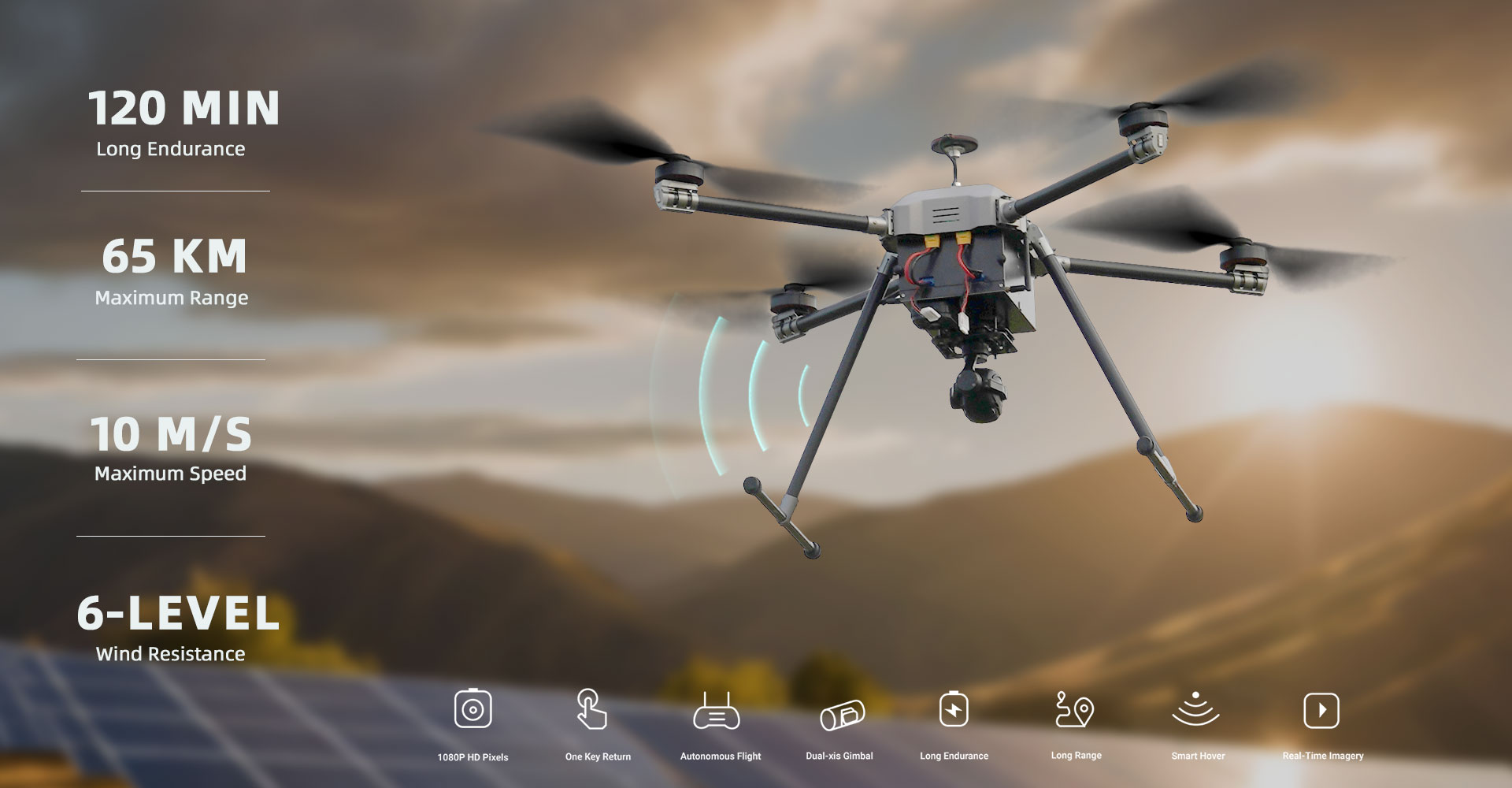

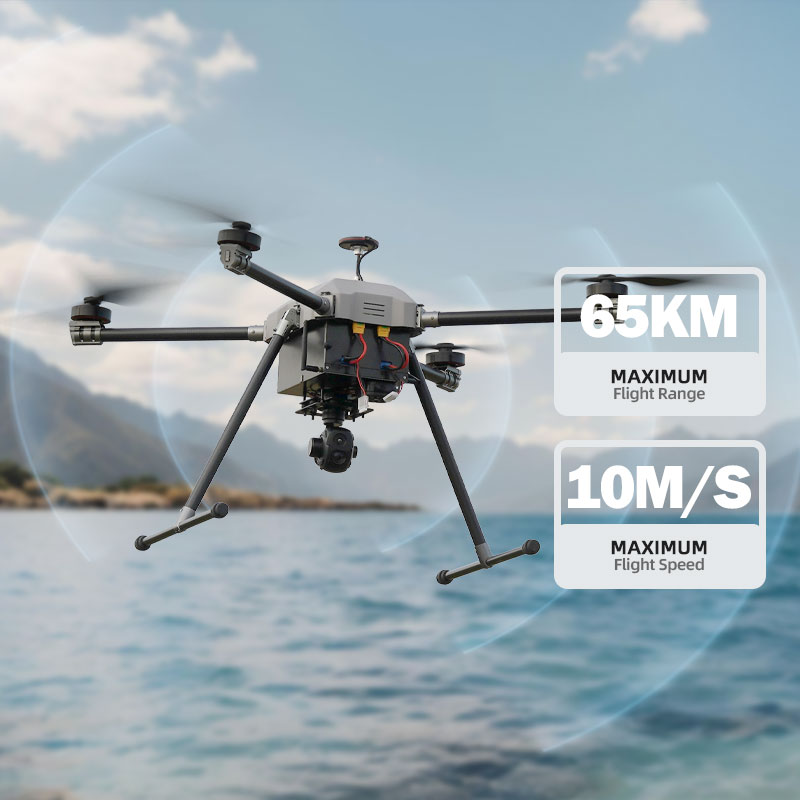

- Impressive Range: With a maximum range of over 65km, this drone can cover large areas efficiently, making it ideal for tasks such as solar panel inspections, environmental monitoring, and power line inspections.
- High Speed and Stability: It boasts a maximum speed of over 10m/s, a climb speed of over 5m/s, and a descent speed of over 3m/s. Additionally, it can resist wind levels of up to Level 6, ensuring stable performance even in challenging weather conditions.

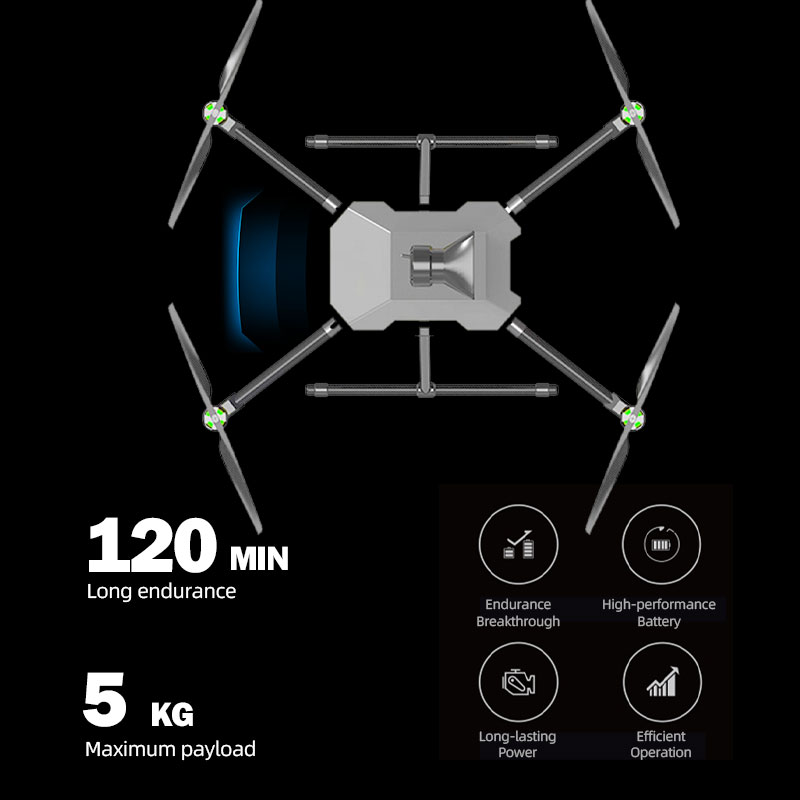

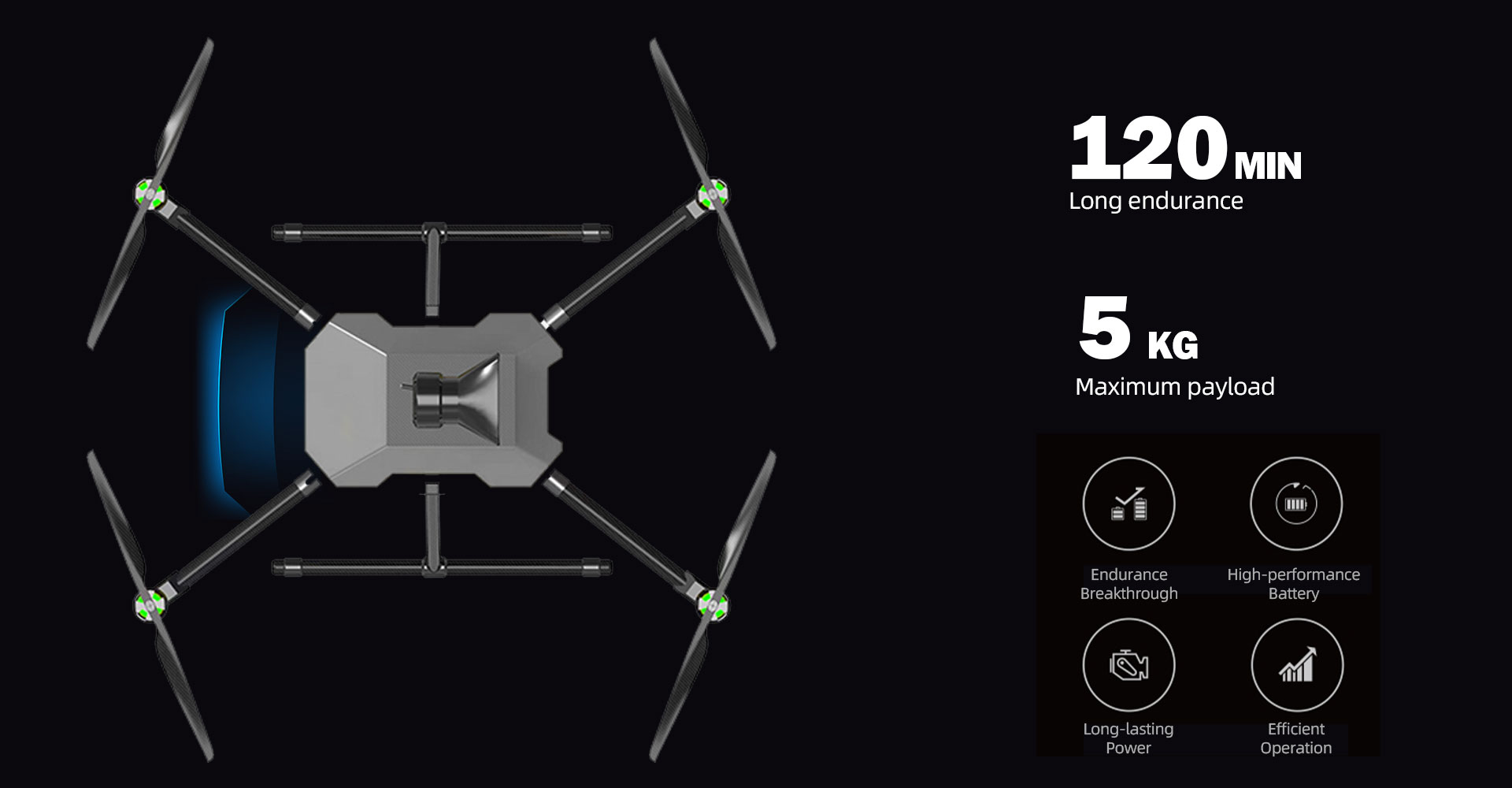

- Extended Flight Time: The HZH C491 can fly for up to 120 minutes when empty, allowing for comprehensive inspections without frequent battery changes, longer tasks can be performed.

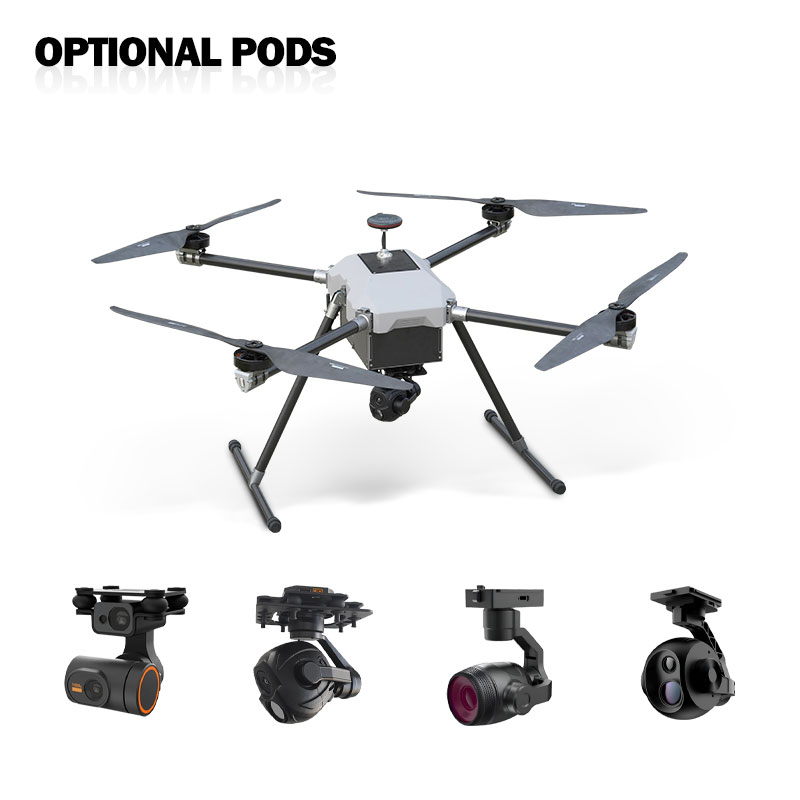

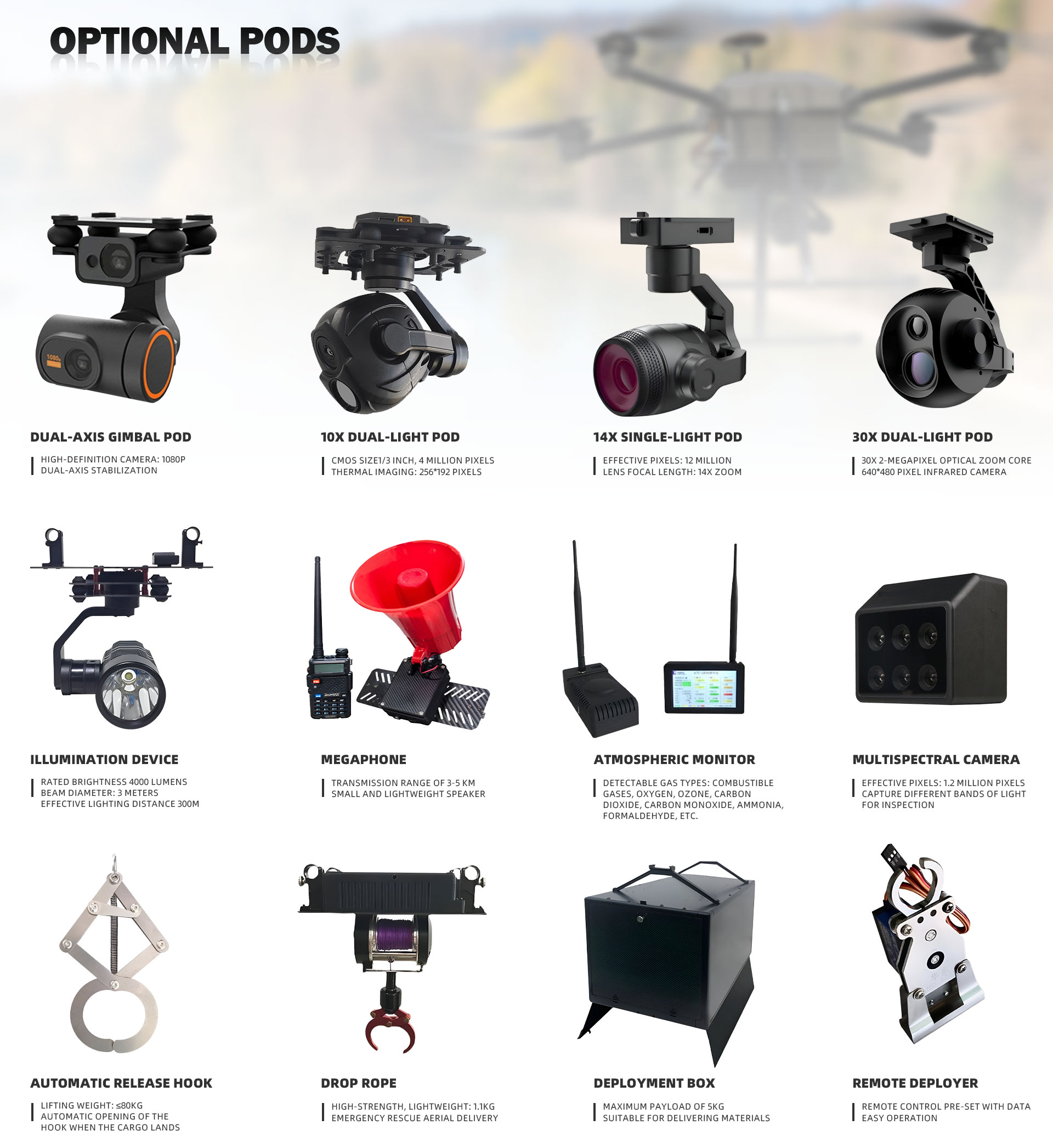

Optional Pods
- Modular and Versatile: The drone supports pod module exchange, allowing for quick and easy swapping of different sensor modules depending on the task at hand.
